by Corey Cohen in 2012
Brings a little music via the TO TAPE-jack of the cassette interface.
This nice sound demo was published by Corey Cohen on Applefritter in 2012. There is also a separate discussion thread that goes into more detail about it.
Corey is a professional computer historian who is specialized in Apple-1 authentication and restoration. He created this program when he found an old Xerox page with note-calibration values for the 6502 microprocessor:
There is someone I have to credit for the chart of C1 at 255 to calibrate my notes on the 6502. The problem is I don't have a name, it was from an old Xerox page shoved in a book...
So thank you to someone out there. You saved me a lot of work using an electronic guitar tuner and a lot of trial and error. Trust me I started this project that way until I remember the chart and tracked it down.
As mention by the program author here.
This program does not work in emulators, a real machine with a working ACI card is needed.
The program has no text-output on the display, it just shows a waiting cursor while playing. The program uses POKE commands to read from memory assigned to the Apple Cassette Interface (ACI). This way the ACI 'clicks' on the speaker output in rapid succession to form a tune.

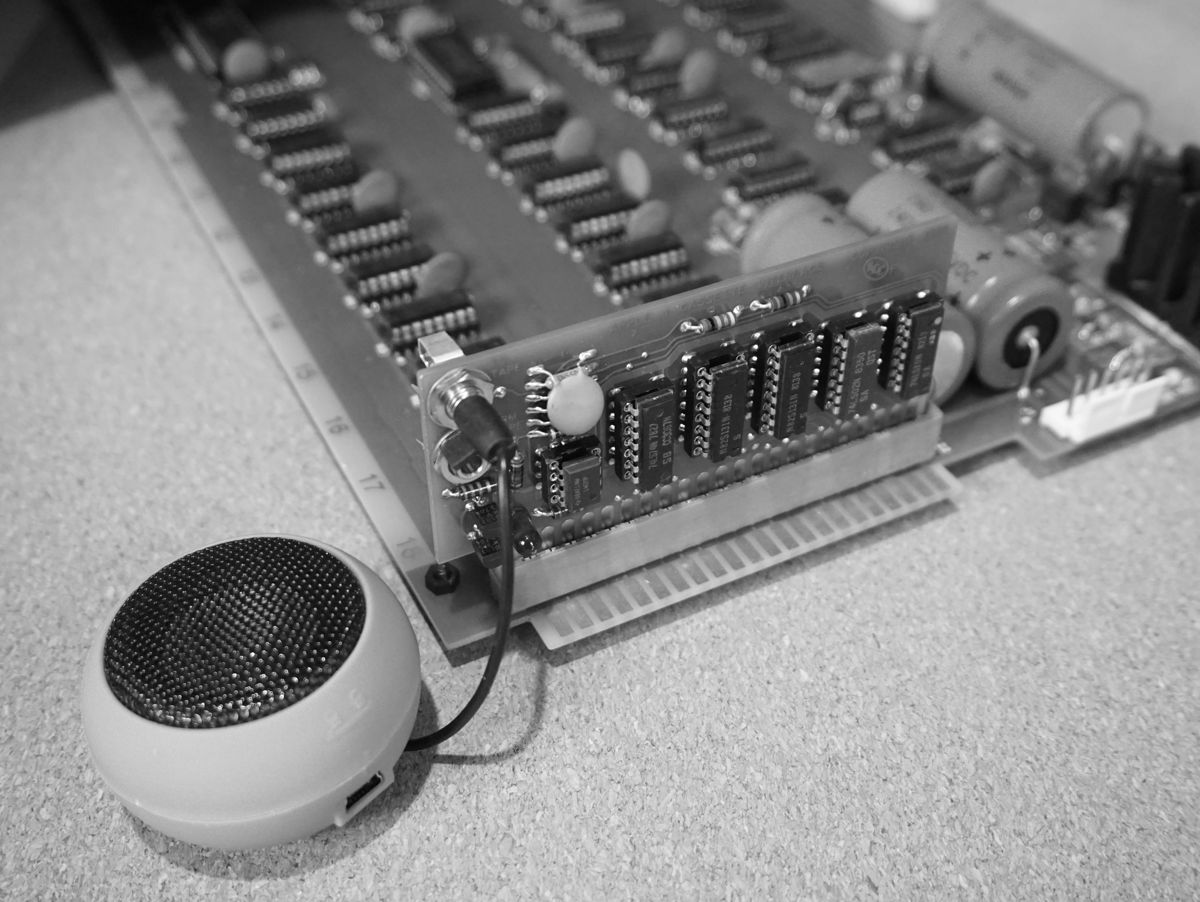

A speaker with a built-in amplifier can be connected to the TO TAPE jack of the ACI to be able to hear the sound. Listen to it below.
Mike Willegal suggests a simple preamp to be used with the speaker output (from this discussion thread):
This simple preamp I built some time ago will provide line level compatible output, if connected to the cassette output.
He has put more information on his website.
A tune consists of succeeding notes that each have a pitch and a duration. Corey has put a table explaining the pitch-values of the different notes in the BASIC source, see below.
10000 REM DURATION POKE BETWEEN 0 AND 255 TO 769
10001 REM NOTES POKE BELOW VALUE TO 768
10002 REM NOTE LOW MED HIGH
10003 REM =====================
10004 REM C 255 128 64
10005 REM C# 241 121 60
10006 REM D 227 114 57
10007 REM D# 214 108 54
10008 REM E 202 102 51
10009 REM F 191 96 48
10010 REM F# 180 91 45
10011 REM G 170 85 43
10012 REM G# 161 81 40
10013 REM A 152 76 38
10014 REM A# 143 72 36
10015 REM B 135 68 34
10016 REM =====================For example, line 46 of the program results in a low G-note (170) with maximum duration (255).
46 POKE 768,170: POKE 769,255: CALL 770
