by Mike Willegal in 2021
Runs different RAM tests in endless passes until stopped by a reset.
I wrote this basic memory test in order to help kit builders test their boards. The original source code was taken from the 6502 memory test from this compute magazine article.
Written by Mike Willegal on his personal website.
The range of memory has to be set before starting the program with 280R.
Using the monitor, enter the starting address and ending address + 1 into locations
0-3of memory. Example: To test memory fromE000toEFFFenter the following into the monitor:
0: 00 E0 00 F0
The above will normally test the lower bank ICs at W0 - W7, depending on the jumper wire setting on the Apple-1 main board (W-E).
To test the upper bank at X0 - X7 (memory address 0000 - 0FFF, with default jumper wire X-0) take into account the program uses a couple of the first bytes and 0280 - 03A1.
The following ranges can be tested:
| Memory Bank | Address range | Set with Wozmon |
|---|---|---|
| △ Upper X0-X7 | 0009 - 027F 1 |
0: 09 00 80 02 |
| △ Upper X0-X7 | 03A2 - 0FFF |
0: A2 03 00 10 |
| ▽ Lower W0-W7 | 1000 - 1FFF |
0: 00 10 00 20 |
| ▽ Lower W0-W7 | E000 - EFFF |
0: 00 E0 00 F0 |
1 This includes the zero page and the stack. Please note that the Apple-1 will hardly boot if it has memory issues here. Memory ICs can be swapped between the banks to solve this.

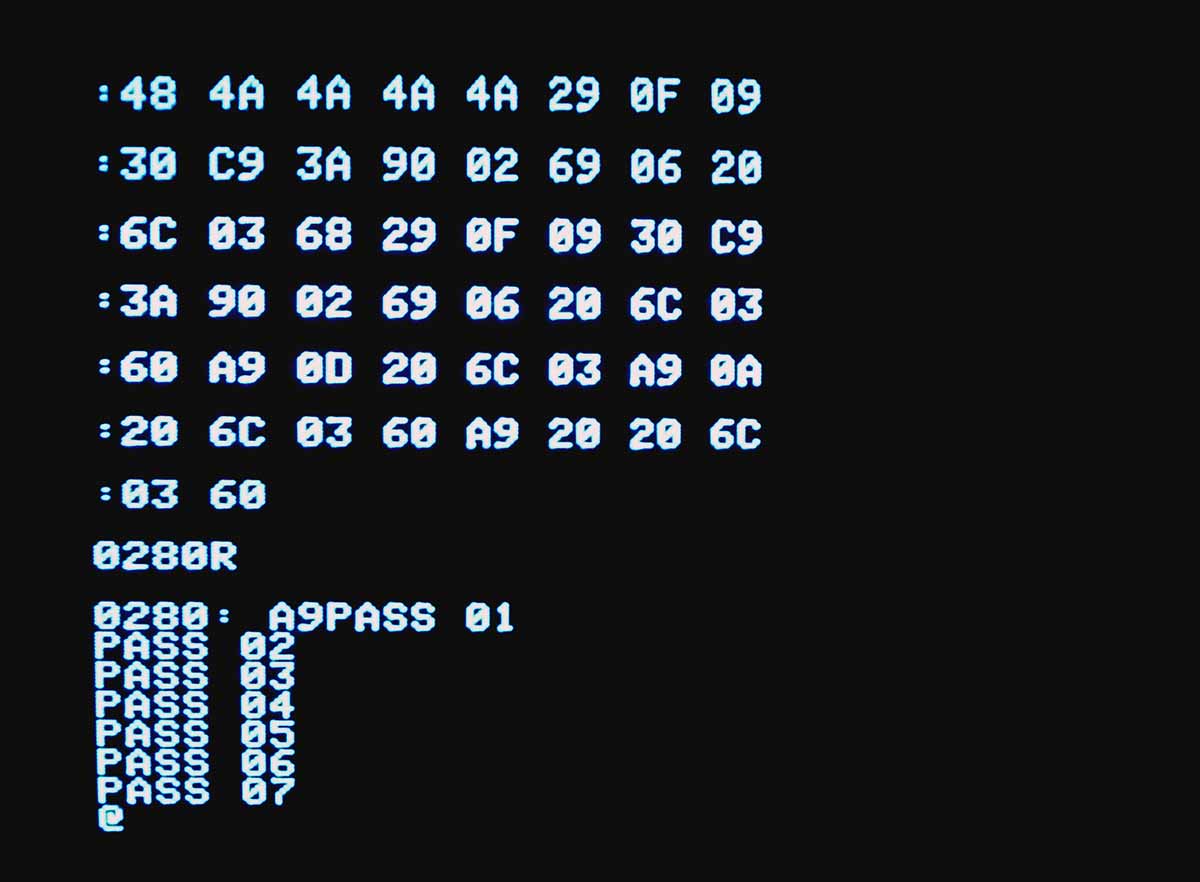

After each pass of the test,
PASS XXis displayed on the terminal and the test will start over. Press RESET to stop the test. The test will stop and drop into the monitor if it detects an error.
Test no. Address Expected Actual 01 E000FFDFHere is an example where bit 5 of location
E000was written as a 1 but read as a 0 in the all ones test.
Each pass of a test consists of 6 basic tests.
Number Description 0 All zeros - each byte of memory is verified that a 0x00 value can be written and read 1 All ones - each byte of memory is verified that a 0xff value can be written and read 2 Floating ones - eight passes, starting with 0x01 and moving the 1 bit to left each succeeding pass - 0x02 0x04 0x08 0x10 0x20 0x40 0x80 3 Floating zeros - eight passes, starting with 0x7f and shifting the 0 bit to the right each succeeding pass - 0xBF 0xDF 0xEF 0xF7 0xFB 0xFD 0xFE 4 Address in Address 1 - one pass with low eight bits of the locations address is written to that location - if this fails, you have a problem with one of the low eight address lines (this is pretty unlikely to fail, since you need these address lines in order to load and run this program) 5 Address in Address 2 - one pass with high eight bits of the locations address written to that location - if this fails, you have a problem with one of the eight high address lines
